Professional
Fork
AO
FORK MIXER FRENCH TYPE
WITH FREE BOWL
WITH FREE BOWL
capacity (lt)
- 170
- 230
- 330
- 440
technical data
| Model | AO 170 | AO 230 | AO 330 | AO 440 |
| Dough capacity (min./max) *kg | 25/80 | 35/120 | 50/180 | 45/240 |
| Bowl volumelt | 170 | 230 | 330 | 440 |
| Motors power 1st /2nd speedKw | 3.7/5.2 | 3.7/5.2 | 3.7/5.2 | 4.6/6.9 |
| Height from bowl edgemmA | 720 | 770 | 820 | 910 |
| Total depthmmP | 1190 | 1330 | 1390 | 1550 |
| Total widthmmC | 930 | 1000 | 1070 | 1170 |
| HeightmmH | 1150 | 1215 | 1215 | 1405 |
| Net weightkg | 420 | 450 | 490 | 710 |
*capacity based on the percentage of liquid/flour = 60%
All data are to be considered as nominal, MIXER SRL reserves the right to make any changes to the product and technical specification without notice.
standard features
• Painted steel structure, raised from the ground by 4 adjustable feet.

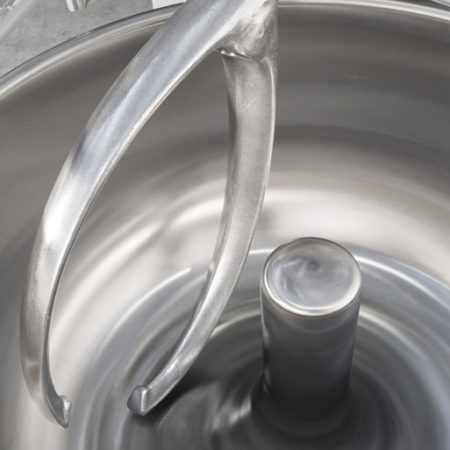

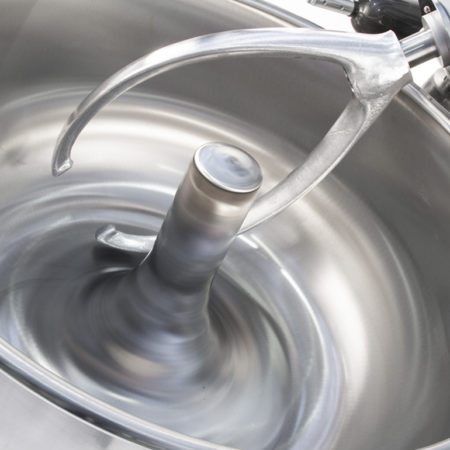

• High-resistance aluminium fork that can be lifted manually.
• Stainless steel bowl.
• Two-speed fork motor.
• Movement transmitted by pulleys and V-belts with gear motor in oil bath.
• Adjustable mechanical brake on bowl.
• Electrical commands on the side of the head, with two timers. Setting of work time with automatic shift from 1st to 2nd speed.
on request
• Stailess steel fork
• Special frequency/voltage: 230/50/3 – 220/60/3 -380/60/3
• Wooden crate packaging
